Pipes
Helical & Longitudinal Submerged Arc Welding
India's Largest Supplier of Line Pipes
Jindal SAW Ltd. emerged as a key player in India’s pipe manufacturing sector after the discovery of offshore crude oil in Bombay High and growing demand for petroleum products and natural gas. In the 1980s, with foreign exchange shortages, Jindal SAW began producing Carbon Steel Pipe with Submerged Arc Welding, reducing reliance on foreign imports and driving down prices. The company’s first API License was obtained in 1986, and by 1994, it expanded globally. With over 19,000 Kilo Meters of Submerged Arc Welded pipes exported, Jindal SAW now operates seven advanced manufacturing plants and is known for its innovative, high-quality pipe solutions, including anti-corrosion and offshore line pipe coatings. It remains a leading supplier to the oil and gas industry worldwide.
Product Profile
HSAW Pipes
Forming Process: Helical (Spiral)
Min Dia: 18"
Max Dia: 158"
Width: 0.79" to 1"
Grades: API 5L X 80 & IS Grades
Capacity: 8,00,000 MTPA

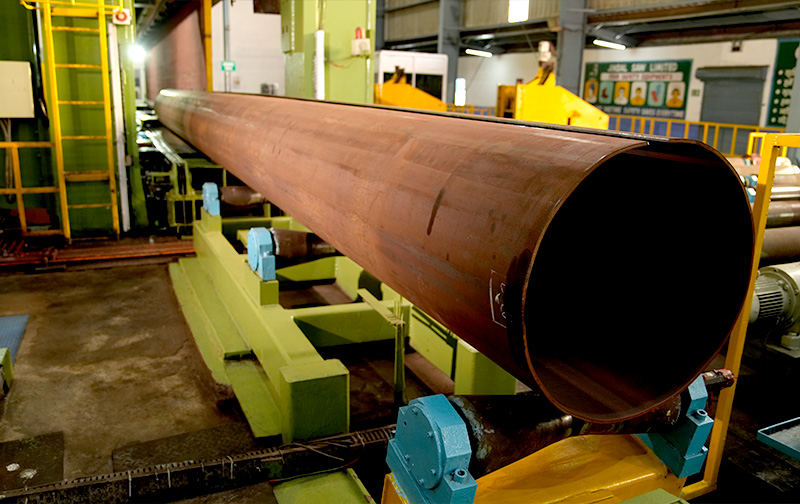

LSAW Pipes
Forming Process: JCO-E
Min Dia: 16"
Max Dia: 60"
Width: 1" to 2.1"
Max Grade: X 80
Capacity: 600,000 MTPA
External Coatings
• Three Layer Polyethylene (3LPE)/Polypropylene (3LPP)
• Fusion Bonded Epoxy (FBE)/Dual Layer Fusion Bonded Epoxy (DFBE)
• Abrasion Resistant Overcoat (ARO)
• Coal Tar Enamel (CTE), Asphalt Enamel (AE)
• Coal Tar Epoxy. Glass Flake Epoxy
• Coal Tar Tape Coating
• Three Layer Polyolefin Tape Coating
• CTE Wrapping, Painting
• Gunniting
• Polyurethane (PU)
• Concrete Weight Coating (CWC)
Internal Coatings
• Fusion Bonded Epoxy (FBE)
• Liquid Epoxy (Flow Coat)
• Gas Flow Epoxy Coating
• Cement Mortar Lining (CML)
• Food Grade Epoxy, Coal Tar Epoxy
• Polyurethane (PU)

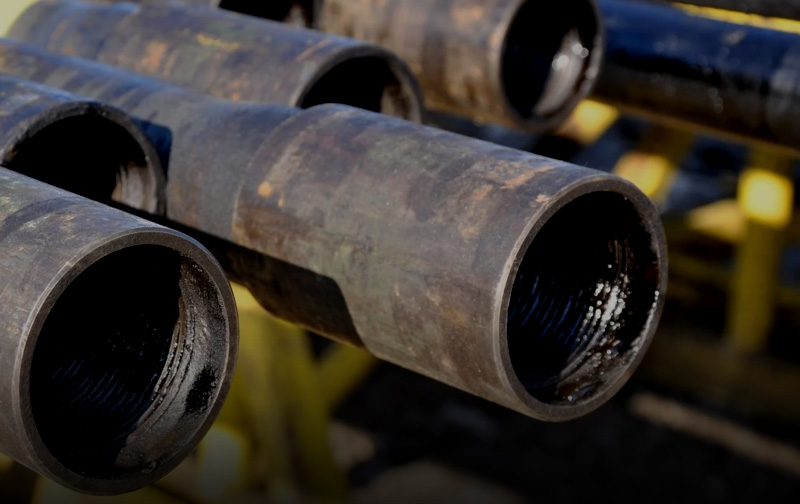

Connector Casings
Jindal SAW seamlessly welds connectors onto pipes designated for outer casings in underground drilling applications.

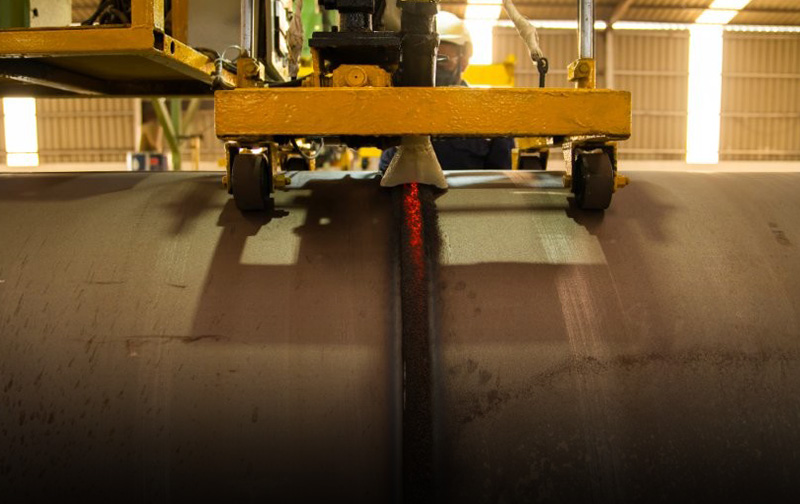

Double Jointing
This innovation allows us to supply pipes in quadruple lengths (QRL- 24 meters) by girth welding two pipes of double random lengths each. Our current capacity spans from 16" OD to 60" OD.
• Capacity: 30,000 p.a.

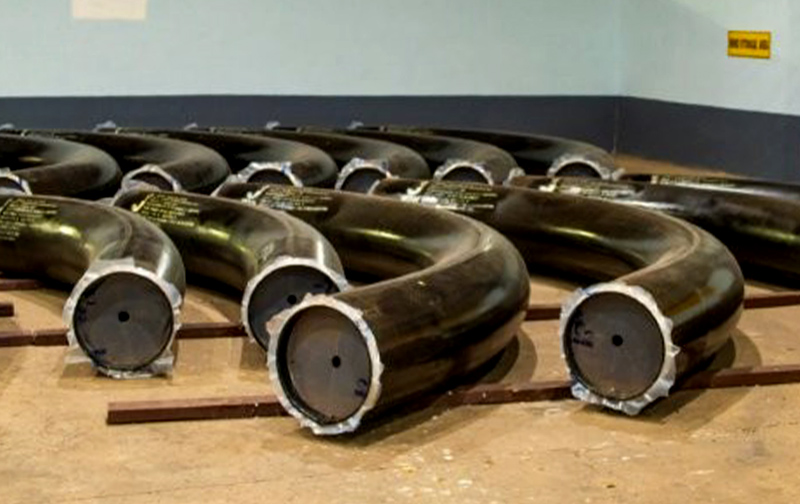

Bends
Our facility for induction bends at Samaghogha was installed with a size range from 6" OD to 56" OD. Jindal SAW has manufactured over 10,000 bends, and various coating options are available for Hot Induction Bends.
Types of Coating on Hot Induction Bends:
- External: FBE/ DFBE, HSS, Painting, Concrete Weight Coating (CWC)
- Internal: Painting

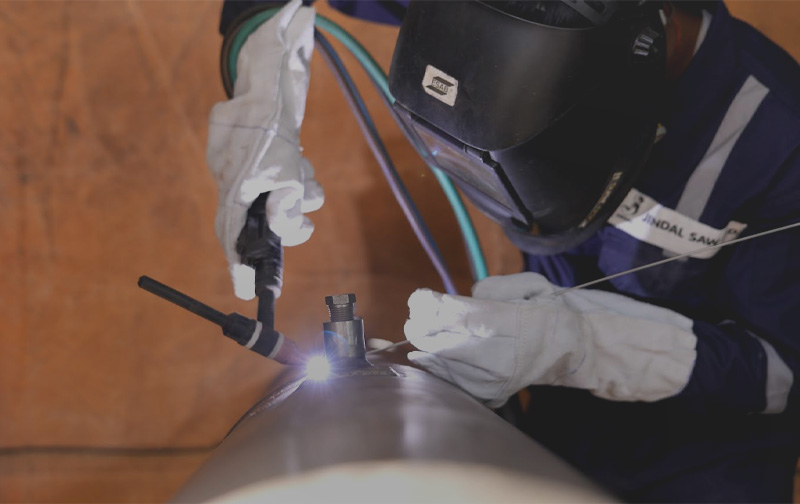

Monel Sheathing
To safeguard offshore pipelines above seawater, Jindal SAW applies Monel Sheathing. This process involves welding a 5mm-thick Monel strip, rigorously tested for 100% dye penetration. Metallographic examination ensures that longitudinal and circumferential welds are free of slag inclusions and cracks.

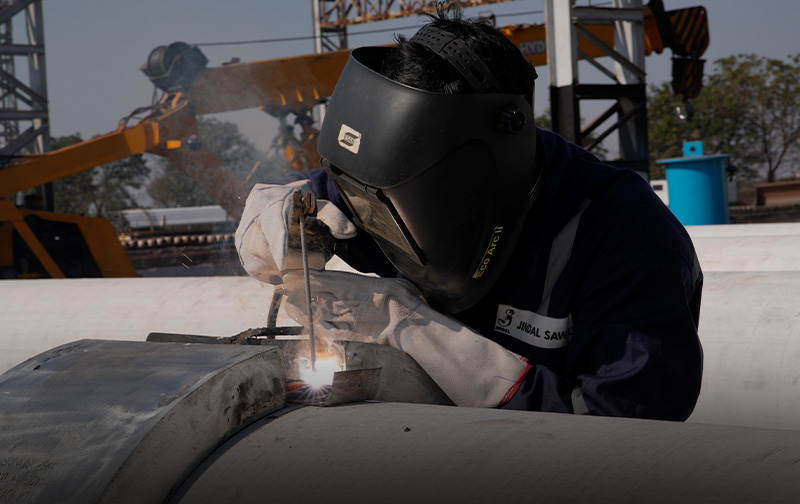

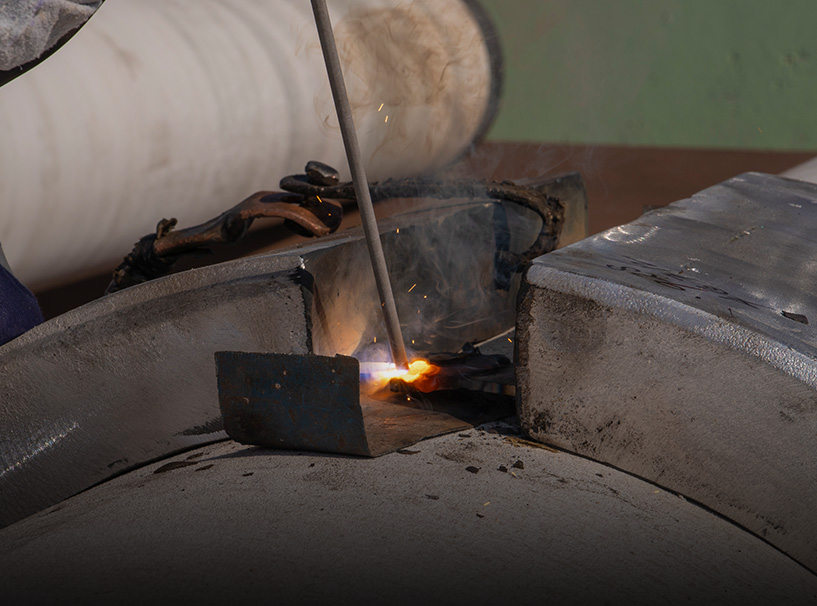

Anodes
Sacrificial Anodes are strategically installed on anti-corrosion coated pipes, enhancing protection against rust and extending the pipeline's lifespan in harsh environmental conditions.
PWHT
Post weld heat treatment is normally carried out to remove the thermal stress developed during welding of high wall thickness pipes . PWHT will help in improving the integrity of weld zone and shall improve the resistance to Hydrogen embrittlement, improving ductility and help in getting desired fracture toughness on weld zones.
Eddy Current Testing
We have a fully automatic facility with a principle of electromagnetic induction for the detection and characterization of surface and near-surface hard spots in carbon steel plates (both sides) which is very critical to maintaining the integrity of pipelines.

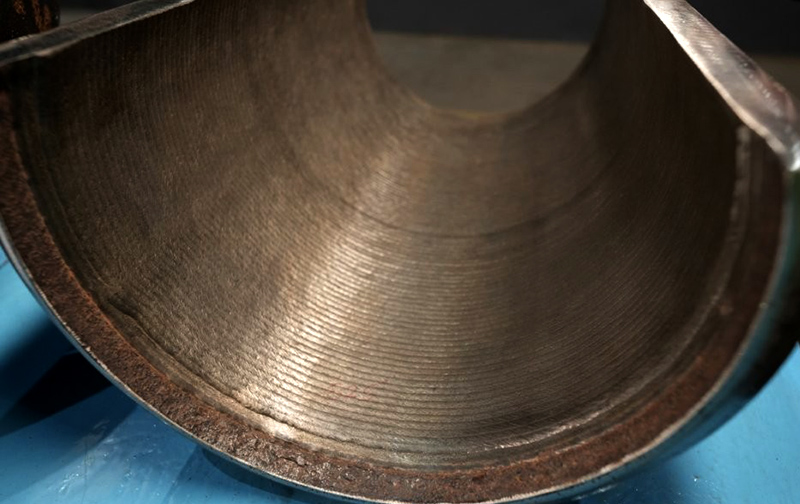

Clad
We have a fully automatic facility with a principle of electromagnetic induction for the detection and characterization of surface and near-surface hard spots in carbon steel plates (both sides) which is very critical to maintaining the integrity of pipelines.
Track Record
Jindal SAW operates seven advanced pipe manufacturing plants with comprehensive anti-corrosion coating capabilities, including a concrete weight coating facility for offshore Line pipes. With a focus on innovation and competitiveness, the company has a robust order book and is known as the ‘Total Pipe Solutions Company,’ embodying excellence in global pipe manufacturing.
- 47,905 Kms
Line Pipe Manufactured - 11,748 Km
X-70 - 7,636 Kms
NACE - 19,119 Kms
Total Exports - 9,115 Kms
Water Pipeline (IS Grade) - 89,374 Kms
External Anti-Corrosion Coatings (3LPE/ PP/ PU/ FBE/ DFBE/ CTE) - 14,397 Kms
Internal Coating (Epoxy/FBE/CML) - 3,922 Kms
CWC Coatings - 13,829 Pieces
LR Bends (Fabricated) - 5,076 Pieces
LR Bends (Exported) - 804 Kms
Connector Casing
Plants & Capabilities
SPIRAL 1
SAMAGHOGHA, GUJARAT
HSAW PIPES
Forming Process: Helical (spiral)
Diameter: 18" to 120"
Max Width: 0.79"
Grade: X80 & IS GRADES
Capacity: 150,000 MT pa
SPIRAL 2
SAMAGHOGHA, GUJARAT
HSAW PIPES
Forming Process: Helical (spiral)
Diameter: 24" to 138"
Max Width: 1"
Grade: X80 & IS GRADES
Capacity: 240,000 MT pa
SPIRAL 3
BELLARY, KARNATAKA
HSAW PIPES
Forming Process: Helical (spiral)
Diameter: 20" to 157"
Max Width: 1"
Grade: X80 & IS GRADES
Capacity: 200,000 MT pa
Spiral 4
KOSI KALAN, U.P.
HSAW PIPES
Forming Process: Helical (spiral)
Diameter: 20" to 120"
Max Width: 1"
Grade: X80 & IS GRADES
Capacity: 150,000 MT pa
Spiral 5
KHANDEL, M.P.
HSAW PIPES
Forming Process: Helical (spiral)
Diameter: 18" to 130"
Max Width: 1"
Grade: IS GRADES
Capacity: 60,000 MT pa
JCO 1
NANAKAPAYA, GUJARAT
LSAW PIPES
Forming Process: JCO-E
Diameter: 16" to 48"
Max Width: 1"
Grade: X80
Capacity: 300,000 MT pa
JCO 3
NANAKAPAYA, GUJARAT
LSAW PIPES
Forming Process: JCO-E
Diameter: 16" to 60"
Max Width: 2"
Grade: X80
Capacity: 300,000 MT pa
Double Jointing: 30,000 pa
IBM
SAMAGHOGHA, GUJARAT
LSAW PIPES
Forming Process: JCO-E
Diameter: 16" to 42"
Max Width: 1"
Grade: X80
Capacity: 250,000 MT pa
Baytown
TEXAS, USA
• Outer Diameter (O.D.): 8 5/8” to 26”
• Wall Thickness: 0.157” to 0.811”
• Plant Capacity: 300,000 MT per annum
• ASTM Products & Grades:
- Standard Pipe: A53 B
- Structural / Piling: A252 / A500
• API Products & Grades:
- Line Pipe: Up to X80
- OCTG Grades: J55, K55, N80, L80, P110, HCP110 (T&C with API connections)
• Pipe Lengths: Up to 120 ft.
JINDAL TUBULAR USA, LLC
BAY ST. LOUIS, MISSISSIPPI, USA
HSAW PIPES
Forming Process: Helical (spiral)
Min Dia: 24"
Max Dia: 60"
Max Width: 1"
Max Grade: API5L X80 & STRUCTURAL GRADES
Capacity: 300,000 Ton pa
Approvals & Certifications
- award_star API 5L
- award_star ISO 9001
- award_star ISO 14001
- award_star ISO 45001
- award_star ISO/TS 29001
- award_star IS 3589
- award_star IS 5504
- award_star ISO14025
- award_star API QI
Material Testing Labs are accredited by: NABL as per ISO/IEC 17025
